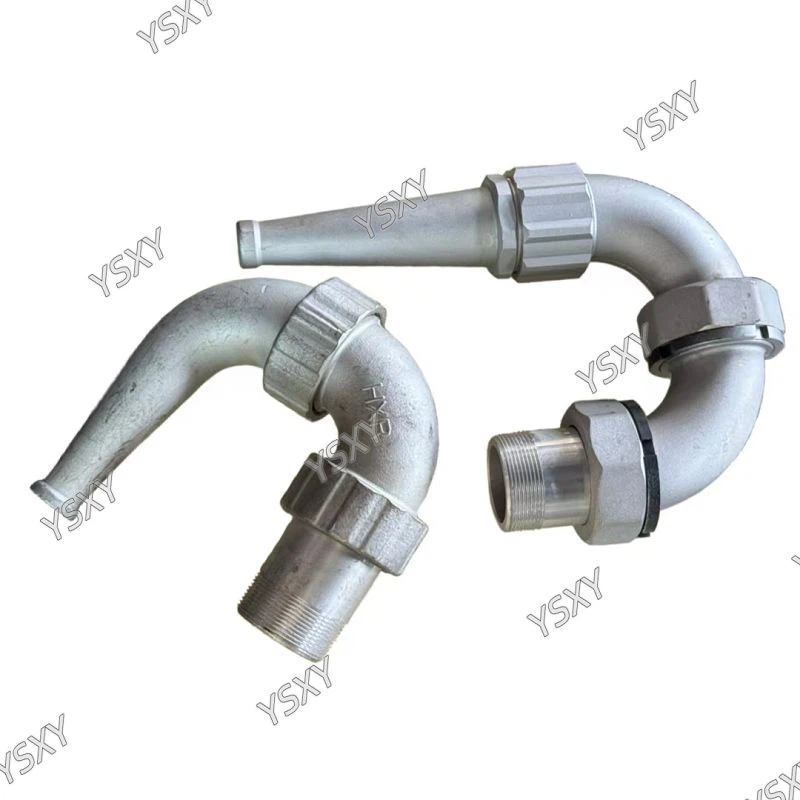

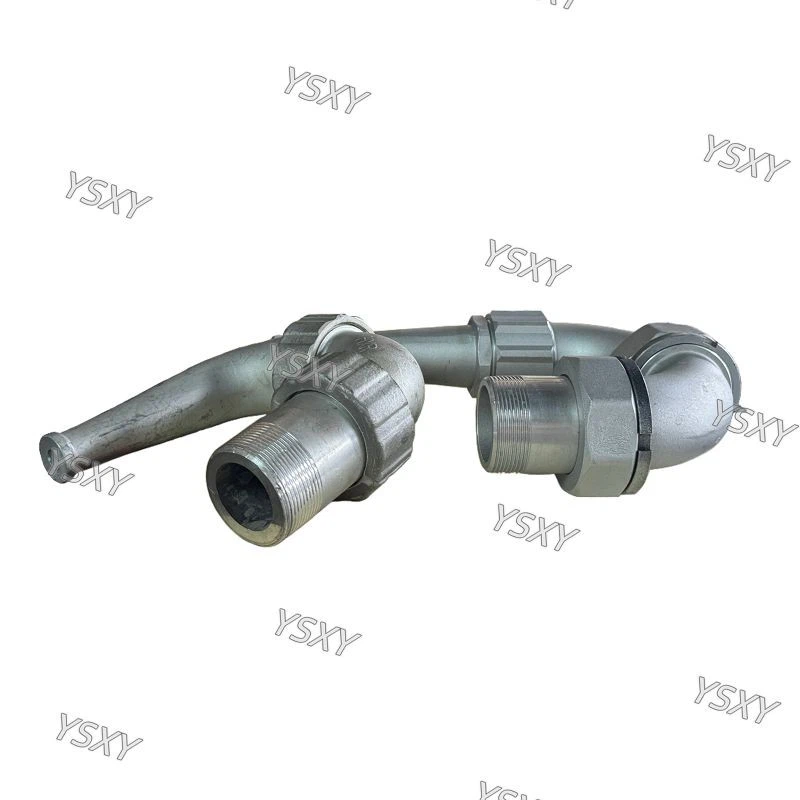

What Is A Watering Cart Three-Bend Nozzle?
Watering cart Three-Bend Nozzle is a high-pressure nozzle with a multi-segment articulated structure. Its outlet end can be bent and rotated in multiple directions and locked at any angle, allowing the operator to precisely direct the water stream to hard-to-reach areas for targeted, dead-angle-free cleaning. Committed to providing innovative and efficient cleaning solutions for the global sanitation industry, Xi'an Yuesheng Xingyao Trading Co., Ltd. enhances this nozzle with a unique universal joint-style design, enabling the orifice to be precisely positioned across multiple axes for millimeter-level control over the cleaning direction. The main body is precision-manufactured from high-strength stainless steel, ensuring exceptional durability and corrosion resistance in high-pressure environments. Whether cleaning under curbs, behind railings, or in other complex geometries, the Three-Bend Nozzle handles it with ease, significantly expanding the operational capability and precision of water trucks and high-pressure cleaners.
Product Specifications
|
Parameter |
Value |
|
Type |
Multi-Angle Adjustable Nozzle |
|
Connection |
1/2" NPT, 3/4" NPT (or BSPP) |
|
Body Material |
304SS / 316SS |
|
Seal Material |
FKM / NBR |
|
Adjustment Range |
Max bending angle per joint ≥ 90° |
|
Operating Pressure |
≤ 10 MPa (100 bar) |
|
Locking Mechanism |
Thread Lock / Ball Joint Lock |
Product Features
Omnidirectional Flexibility: Unique dual-ball-joint or three-joint design enables infinite positioning of the orifice in 3D space for precise targeting.
Secure Angle Locking: Reliable locking mechanism maintains the set angle under high-pressure impact, preventing drift during operation.
High-Pressure, Zero-Leakage Sealing: Multiple precision seals at the joints prevent leakage even under high pressure and frequent articulation.
Exceptional Durability: Joint bearings and core components made from wear-resistant alloys and stainless steel for long service life under heavy use.
Broad Applicability: One unit replaces multiple fixed-angle nozzles, reducing inventory and handling diverse complex cleaning tasks.
Precision Ball Joint: The core rotating component, with a smooth, wear-resistant surface for flexibility and long life.
Reinforced Lock Nut: Wide-tooth design provides strong locking force, easily tightened by hand.
Multi-Layer Sealing System: Each joint includes primary and dust seals to effectively block water and contaminants.
Ergonomic Design: Smooth articulation and effortless locking enhance user experience.
Application Areas
Municipal Sanitation: Cleaning hard-to-reach areas like the inside of curbs, under guardrails, and around trash bins.
Industrial Cleaning: Cleaning complex internal structures of equipment, pipe walls, and molds.
Construction Sites: Flushing stubborn mud from vehicle undercarriages and tires.
Firefighting: Serving as an extension for portable equipment to adjust stream angle for precise fire suppression.
Product Evidence
Each joint of this product undergoes over 10,000 cycle endurance tests to ensure long-term reliability. All products are high-pressure tested for leaks at the maximum working pressure before shipment. We adhere to strict production standards to ensure consistent and stable product quality.
Attentive Service
We offer comprehensive service support:
Pre-sales Consultation: We provide the most suitable cleaning solutions and product selection advice. Contact us via Live Chat or email g15809288359@outlook.com.
Order Assurance: We supply standard products and accommodate custom needs (e.g., special connections, lengths). Strict QC and efficient logistics ensure you receive reliable products on time.
After-sales Support: A product quality warranty is provided. Our technical support team is available via Live Chat and Email to resolve any issues with installation, use, or maintenance.
FAQ
Q: What is the maximum pressure the Three-Bend Nozzle can handle?
A: Standard models can operate steadily at 10 MPa (approx. 100 bar). For higher pressure requirements, please consult us for high-pressure custom solutions.
Q: Will the joints become loose after prolonged use?
A: Our product features wear-resistant design and a reliable locking mechanism. With normal use and periodic maintenance, it can maintain stable locking force long-term. Seals are wear parts; regular replacement maintains optimal performance.
Q: What if the nozzle gets clogged?
A: As the flow path can be curved, pre-filtration of water is recommended. If clogged, try straightening the nozzle and backflushing with low-pressure water or using a soft, thin wire to clear the obstruction.
Q: Can you provide a longer version?
A: Yes, we can customize nozzles with different lengths and numbers of joints based on your specific application needs. Please provide your detailed requirements.
